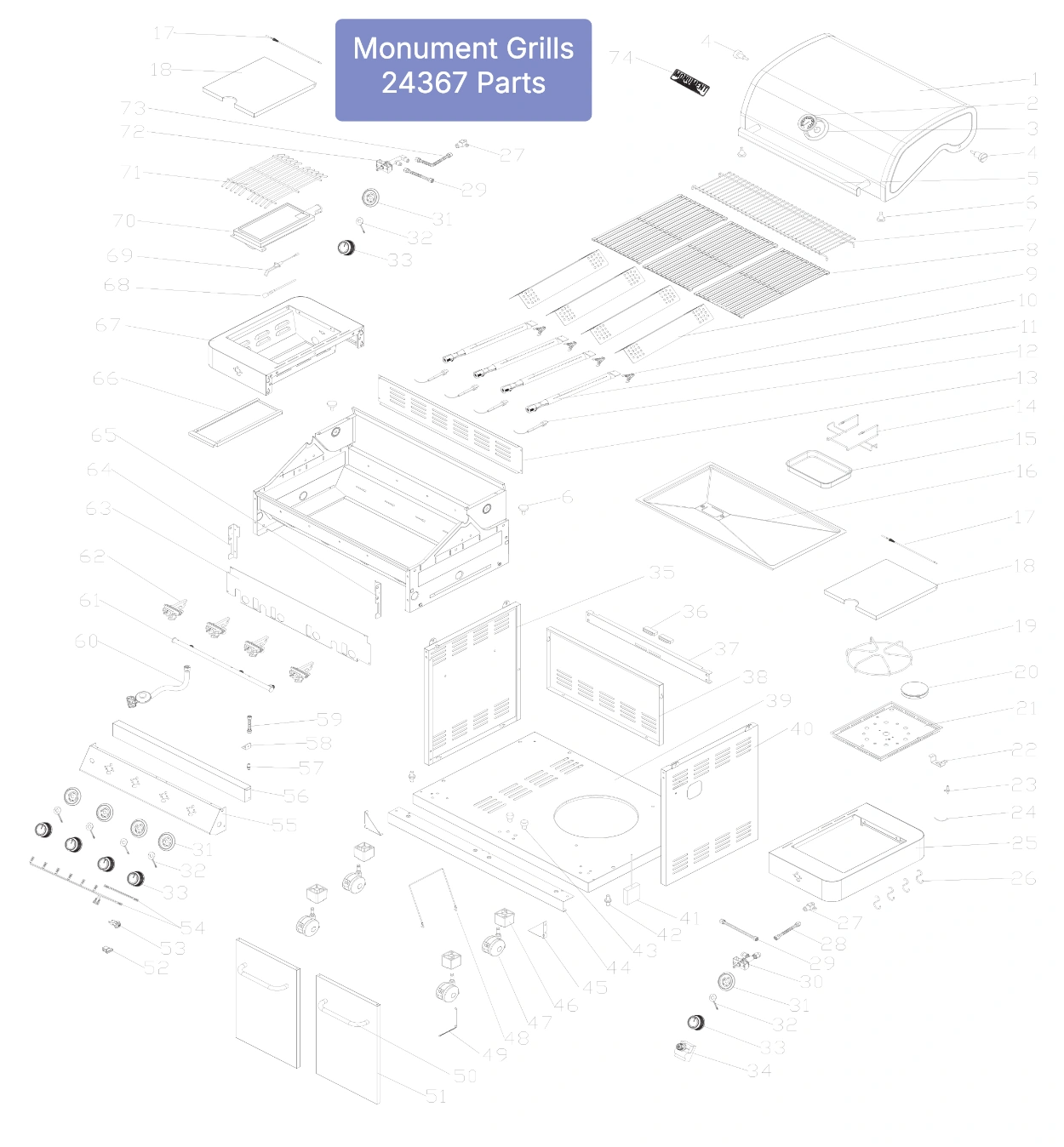

Check the Monument Grills 24367 parts diagram to see the full layout of your grill. We present this illustration alongside a Monument Grills 24367 parts list to show every available part. Together, these references help you identify the correct Monument Grills 24367 Parts.
The detailed exploded view allows you to locate components and shows how the they fit together. Match the reference numbers on the illustration to the table to identify the replacement parts you need.
Each row provides the unique part number linked to the reference number. Compare the reference numbers in the drawing with the parts list to ensure you choose the proper component for your grill.
Check the model number on your grill before ordering Monument Grills 24367 Parts.
Monument Grills 24367 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Main Lid | D010012896 | 1 |
| 2 | Temperature Gauge | A0212824 | 1 |
| 3 | Temperature Gauge Seat | A0212825 | 1 |
| 4 | Main Lid Screw | A0407131 | 2 |
| 5 | Main Lid Handle | D010010251 | 1 |
| 6 | Hood Buffer | A0201340 | 4 |
| 7 | Warming Rack | A0212856 | 1 |
| 8 | Cooking Grid With Hole | A0212804 | 3 |
| 9 | Flame Tamer | D010012307 | 4 |
| 10 | Clamp Spring | A0212873 | 4 |
| 11 | Main Burner | A0212926 | 4 |
| 12 | Main Burner Igniter Wire | D010012900 | 4 |
| 13 | Back Panel, Top | D010012737 | 1 |
| 14 | Grease Box Bracket | A0212838 | 1 |
| 15 | Grease Box | D010012705 | 1 |
| 16 | Grease Tray | D010012072 | 1 |
| 17 | Side Burner Lid Hinge Rod | A0212534 | 2 |
| 18 | Side Burner Lid | D010007598 | 2 |
| 19 | Side Burner Cooking Grid, Right | A0212248 | 1 |
| 20 | Side Burner, Right | A0212533 | 1 |
| 21 | Side Burner Tray | D011006420 | 1 |
| 22 | Side Burner Orifice Bracket | D019706920 | 1 |
| 23 | Side Burner Igniter, Right | A0212436 | 1 |
| 24 | Side Burner Igniter Wire, Right | A0212869 | 1 |
| 25 | Side Shelf, Right | D010014389 | 1 |
| 26 | Hook | A0212538 | 4 |
| 27 | Side Burner Orifice | A0212828 | 2 |
| 28 | Side Burner Flex Gas Line, 250 | A020021 | 1 |
| 29 | Side Burner Flex Gas Line, 480 | A02120090 | 2 |
| 30 | Side Burner Gas Vavle, Right | A02120088 | 1 |
| 31 | Control Knob Base | D010012905 | 6 |
| 32 | LED Lamp Panel | A0212777 | 6 |
| 33 | Control Knob | A0212922 | 6 |
| 34 | Pulse Igniter Module | A0212864 | 1 |
| 35 | Side Panel,Left | D010012742 | 1 |
| 36 | Door Magnet | A0201249 | 2 |
| 37 | Cart Frame, Front | D010012721 | 1 |
| 38 | Back Panel, Bottom | D010012748 | 1 |
| 39 | Bottom Panel | D010012098 | 1 |
| 40 | Side Panel, Right | D010012903 | 1 |
| 41 | Battery Box | A0212663 | 1 |
| 42 | Spindle Below Door Panel | A0212557 | 2 |
| 43 | Spacing Screw Below Door Panel | A02120079 | 2 |
| 44 | Cart Bottom Panel Front Cummerbund Strip | D010012063 | 1 |
| 45 | Triangle Bracket, Left | D010012745 | 2 |
| 46 | Swivel Caster Fixing Plug | A0212805 | 4 |
| 47 | Swivel Caster | A0211004 | 4 |
| 48 | Gas-jar Fixing Line | A0212837 | 1 |
| 49 | Lighting Rod | A0212835 | 1 |
| 50 | Door Handle | D010012747 | 2 |
| 51 | Front Door | D010012094 | 2 |
| 52 | LED Lamp Seat-USB2.0 | A02120032 | 1 |
| 53 | LED Lamp Switch | A0212627 | 1 |
| 54 | LED Lamp Circuit | D010013687 | 1 |
| 55 | Main Control Panel | D010014390 | 1 |
| 56 | Main Control Panel Frame | D010012054 | 1 |
| 57 | Gas Connector | A0212830 | 1 |
| 58 | Gas Connector Fixing Panel | D010012298 | 1 |
| 59 | Main Burner Flex Gas Line | A0212829 | 1 |
| 60 | Regulator, LP | A0212831 | 1 |
| 61 | Main Manifold | A02120086 | 1 |
| 62 | Main Gas Valve | A0212862 | 4 |
| 63 | Front Baffle | D010012052 | 1 |
| 64 | Control Panel Fixing Panel, Left | D010012050 | 1 |
| 65 | Control Panel Fixing Panel, Right | D010012051 | 1 |
| 66 | Side Burner Grease Box | D010012440 | 1 |
| 67 | Side Shelf, Left | D010013689 | 1 |
| 68 | Side Burner Igniter Wire, Left | A0212870 | 1 |
| 69 | Side Burner Igniter, Left | A0212871 | 1 |
| 70 | Side Burner, Left | A0212872 | 1 |
| 71 | Side Burner Cooking Grid, Left | A0212875 | 1 |
| 72 | Side Burner Gas Vavle, Left | A02120089 | 1 |
| 73 | Side Burner Flex Gas Line, 650 | A0201169 | 1 |
| 74 | Logo | A0212808 | 1 |
