Check the complete Monument Grills 77352 parts list and the Monument Grills 77352 parts diagram below. This page displays the available Monument Grills 77352 Parts needed to service your grill.
Connecting the table entries to the exploded view helps you find the required part number for a component. This direct matching process allows you to select the correct replacement parts.

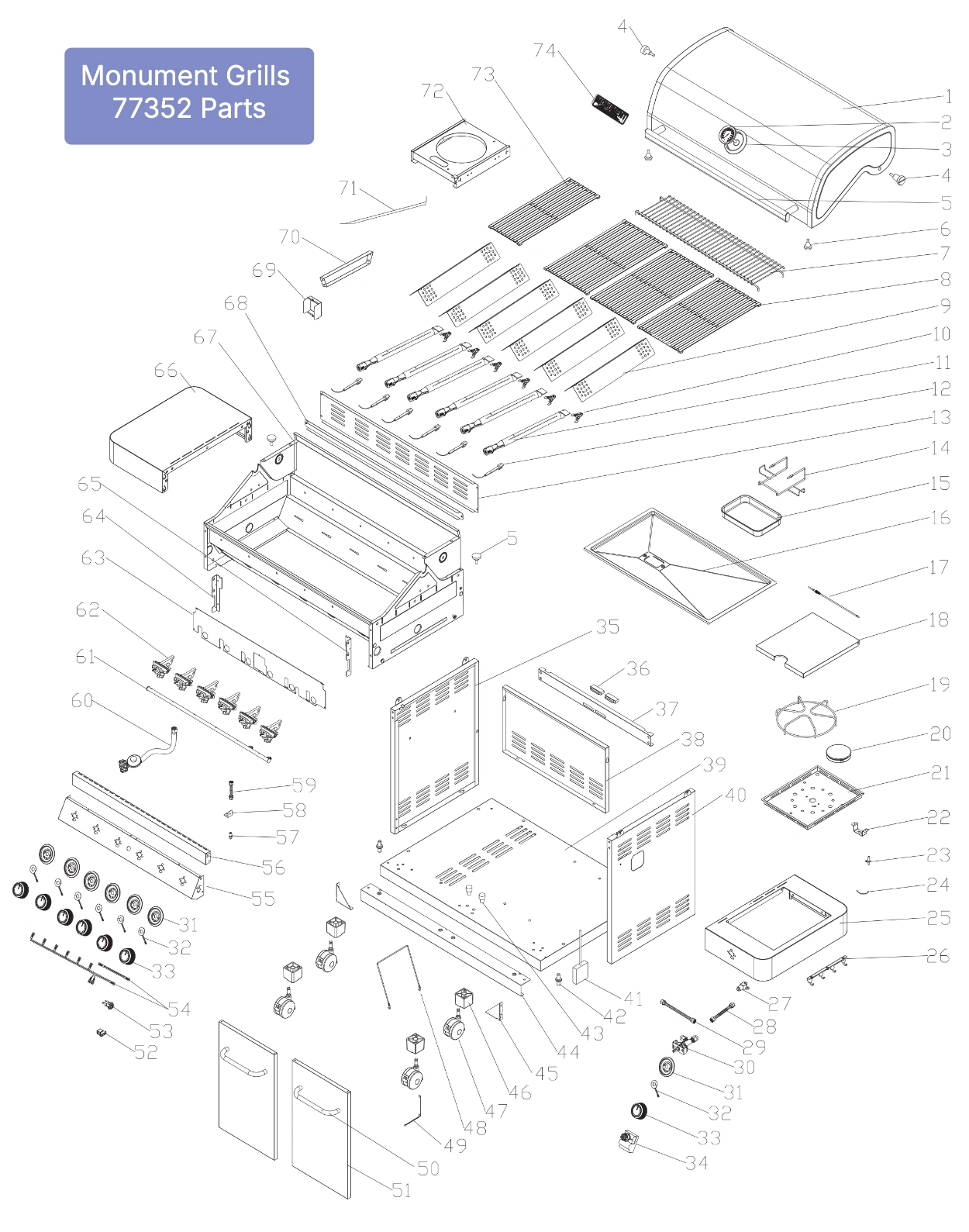

The exploded view shows how every assembly connects within the grill. Reviewing this visual layout shows the precise location of each component before you begin disassembling the grill.
Find the identification label on your grill to double-check the model number. Matching this code helps you select the correct Monument Grills 77352 Parts.
Monument Grills 77352 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Main Lid | D010015902 | 1 |
| 2 | Temperature Gauge | A0212824 | 1 |
| 3 | Temperature Gauge Seat | A0212825 | 1 |
| 4 | Main Lid Screw | A0407131 | 2 |
| 5 | Main Lid Handle | D010011245 | 1 |
| 6 | Hood Buffer | A0201340 | 4 |
| 7 | Warming Rack | A02120163 | 1 |
| 8 | Cooking Grid With Hole, A | A02120164 | 3 |
| 9 | Flame Tamer | D010012307 | 6 |
| 10 | Clamp Spring | A0212873 | 6 |
| 11 | Main Burner | A0212926 | 6 |
| 12 | Main Burner Igniter Wire | D010015903 | 6 |
| 13 | Back Panel, Top | D010015746 | 1 |
| 14 | Grease Box Bracket | A0212838 | 1 |
| 15 | Grease Box | D010012705 | 1 |
| 16 | Grease Tray | D010013589 | 1 |
| 17 | Side Burner Lid Hinge Rod | A0212534 | 1 |
| 18 | Side Burner Lid | D010007598 | 1 |
| 19 | Side Burner Cooking Grid, Right | A0212248 | 1 |
| 20 | Side Burner, Right | A0212533 | 1 |
| 21 | Side Burner Tray | D011006420 | 1 |
| 22 | Side Burner Orifice Bracket | D019706920 | 1 |
| 23 | Side Burner Igniter, Right | A0212436 | 1 |
| 24 | Side Burner Igniter Wire, Right | A0212890 | 1 |
| 25 | Side Shelf, Right | D010014389 | 1 |
| 26 | Hook | D010015802 | 1 |
| 27 | Side Burner Orifice | A0212828 | 1 |
| 28 | Side Burner Flex Gas Line, 250 | A020021 | 1 |
| 29 | Side Burner Flex Gas Line, 480 | A02120090 | 1 |
| 30 | Side Burner Gas Vavle, Right | A02120088 | 1 |
| 31 | Control Knob Base | D010015906 | 7 |
| 32 | LED Lamp Panel | A02120213 | 7 |
| 33 | Control Knob | A02120298 | 7 |
| 34 | Pulse Igniter Module | A02120161 | 1 |
| 35 | Side Panel,Left | D010012742 | 1 |
| 36 | Door Magnet | A0201249 | 2 |
| 37 | Cart Frame, Front | D010015794 | 1 |
| 38 | Back Panel, Bottom | D010015796 | 1 |
| 39 | Bottom Panel | D010015792 | 1 |
| 40 | Side Panel, Right | D010012903 | 1 |
| 41 | Battery Box | A0212663 | 1 |
| 42 | Spindle Below Door Panel | A0212557 | 2 |
| 43 | Spacing Screw Below Door Panel | A02120079 | 2 |
| 44 | Cart Bottom Panel Front Cummerbund Strip | D010013610 | 1 |
| 45 | Triangle Bracket, Left | D010012745 | 2 |
| 46 | Swivel Caster Fixing Plug | A0212805 | 4 |
| 47 | Swivel Caster | A0211004 | 4 |
| 48 | Gas-jar Fixing Line | A0212837 | 1 |
| 49 | Lighting Rod | A0212835 | 1 |
| 50 | Door Handle | D010012747 | 2 |
| 51 | Front Door | D010013998 | 2 |
| 52 | LED Lamp Seat-USB2.0 | A02120032 | 1 |
| 53 | LED Lamp Switch | A0212627 | 1 |
| 54 | LED Lamp Circuit | D010015910 | 1 |
| 55 | Main Control Panel | D010013625 | 1 |
| 56 | Main Control Panel Frame | D010013594 | 1 |
| 57 | Gas Connector | A0212830 | 1 |
| 58 | Gas Connector Fixing Panel | D010012298 | 1 |
| 59 | Main Burner Flex Gas Line | A0212829 | 1 |
| 60 | Regulator, LP | A0212831 | 1 |
| 61 | Main Manifold | A02120158 | 1 |
| 62 | Main Gas Valve | A0212862 | 6 |
| 63 | Front Baffle | D010014626 | 1 |
| 64 | Control Panel Fixing Panel, Left | D010012050 | 1 |
| 65 | Control Panel Fixing Panel, Right | D010012051 | 1 |
| 66 | Side Shelf, Left | D010012770 | 1 |
| 67 | Firebox | D010013634 | 1 |
| 68 | Back Panel, A | D010015754 | 1 |
| 69 | Pulsating adiabatic box | D010014628 | 1 |
| 70 | Firebox fixing panel middle | D010013617 | 1 |
| 71 | Gas cylinder baffler | D010015102 | 1 |
| 72 | Gas cylinder bottom base | D010015798 | 1 |
| 73 | Cooking Grid With Hole, B | A02120165 | 1 |
| 74 | Logo | A0212808 | 1 |
