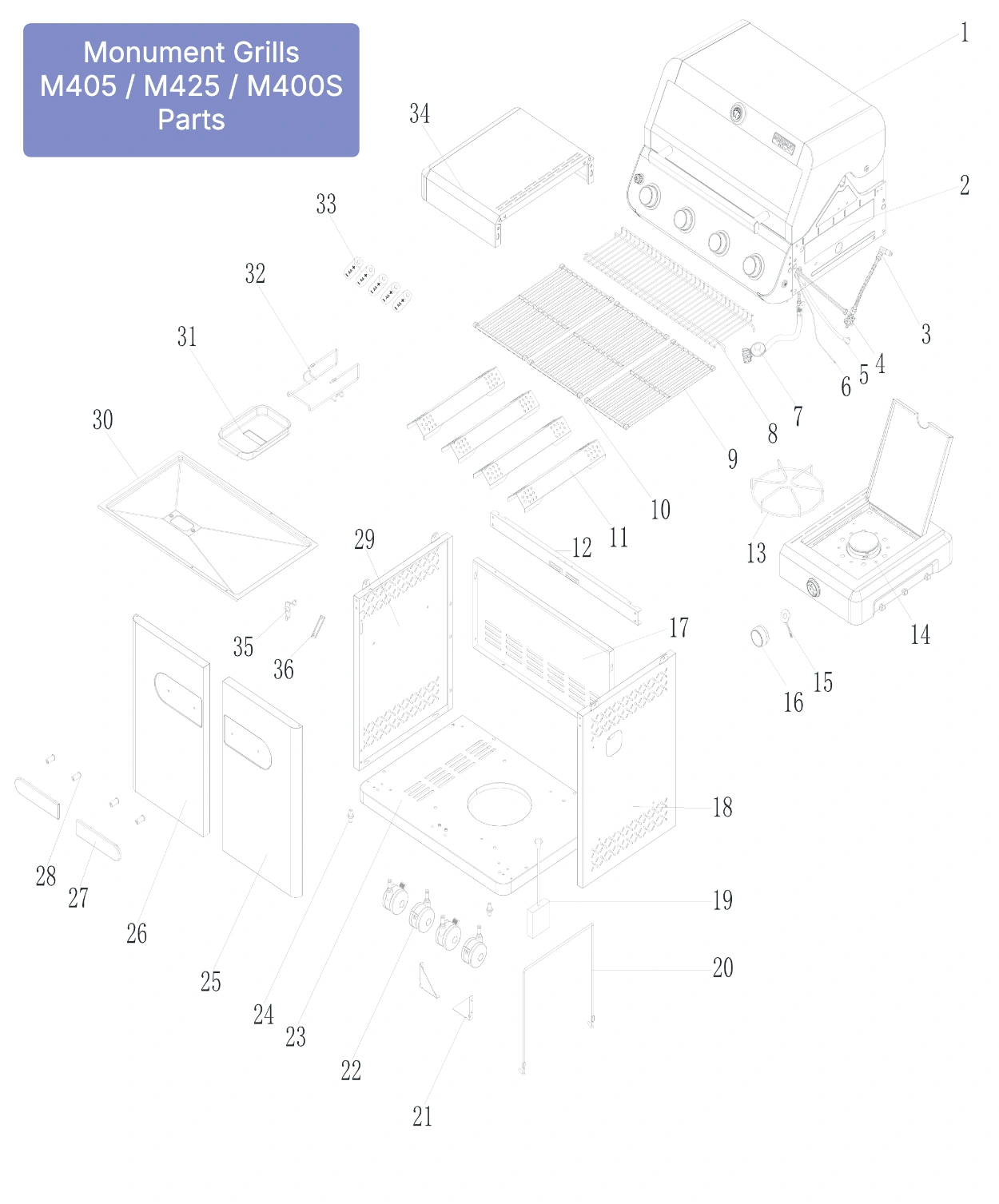

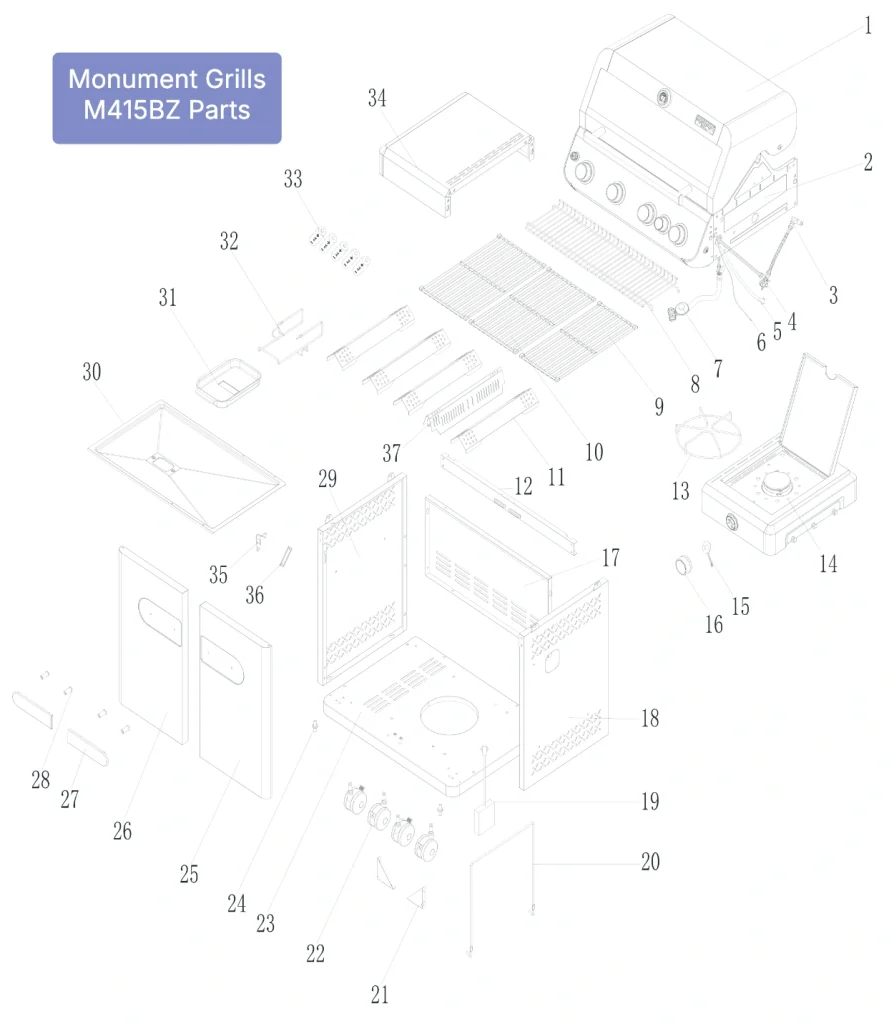

Browse the Monument Grills M405, M425, M400S, M415BZ parts diagram below to visually locate the exact section of the grill you are working on. We pair this illustration with a complete Monument Grills M405, M425, M400S, M415BZ parts list to catalog every available component. Using these resources together helps you pinpoint the correct Monument Grills M405, M425, M400S, M415BZ Parts.
The exploded view helps you understand how different assemblies fit together. Match the assigned reference numbers from the illustration to the table to confirm your required replacement parts.
Each row provides the specific part number linked to that visual reference. Verify these details across the catalog to identify your Monument Grills M405, M425, M400S, M415BZ Parts.
Monument Grills M405 (M425, M400S, M415BZ) Parts List
| Ref. No | Description |
|---|---|
| 1 | Lid Kit |
| 2 | Firebox Assembly |
| 3 | Side Burner Nazzle Seat |
| 4 | Sider Burner Regulator |
| 5 | Side Burner Lamp Panel Wire |
| 6 | Side Burner Igniter Wire |
| 7 | LP Regulator |
| 8 | Warming Rack |
| 9 | Cooking Grid |
| 10 | Cooking Grid |
| 11 | Flame Tamer |
| 12 | Cart Front Bar |
| 13 | Pan Bracket |
| 14 | Side Shelf, Right |
| 15 | LED Lamp Panel |
| 16 | Control Knob |
| 17 | Cart Back Panel |
| 18 | Cart Right Side Panel |
| 19 | Battery Box |
| 20 | Gas Tank Holding Wire |
| 21 | Triangle Joint Parts |
| 22 | Locking Caster |
| 23 | Cart Bottom Board |
| 24 | Spindle Below Door Panel |
| 25 | Cabinet Door, Right |
| 26 | Cabinet Door,Left |
| 27 | Door Handle |
| 28 | Door Handle Seat |
| 29 | Cart Left Side Panel |
| 30 | Grease Tray |
| 31 | Grease Pan |
| 32 | Grease Pan Bracket |
| 33 | Battery |
| 34 | Side Shelf, Left |
| 35 | Bottle Opener |
| 36 | Bottle Opener Retainer |
| 37 | Flame Tamer (Only for M405BZ) |
