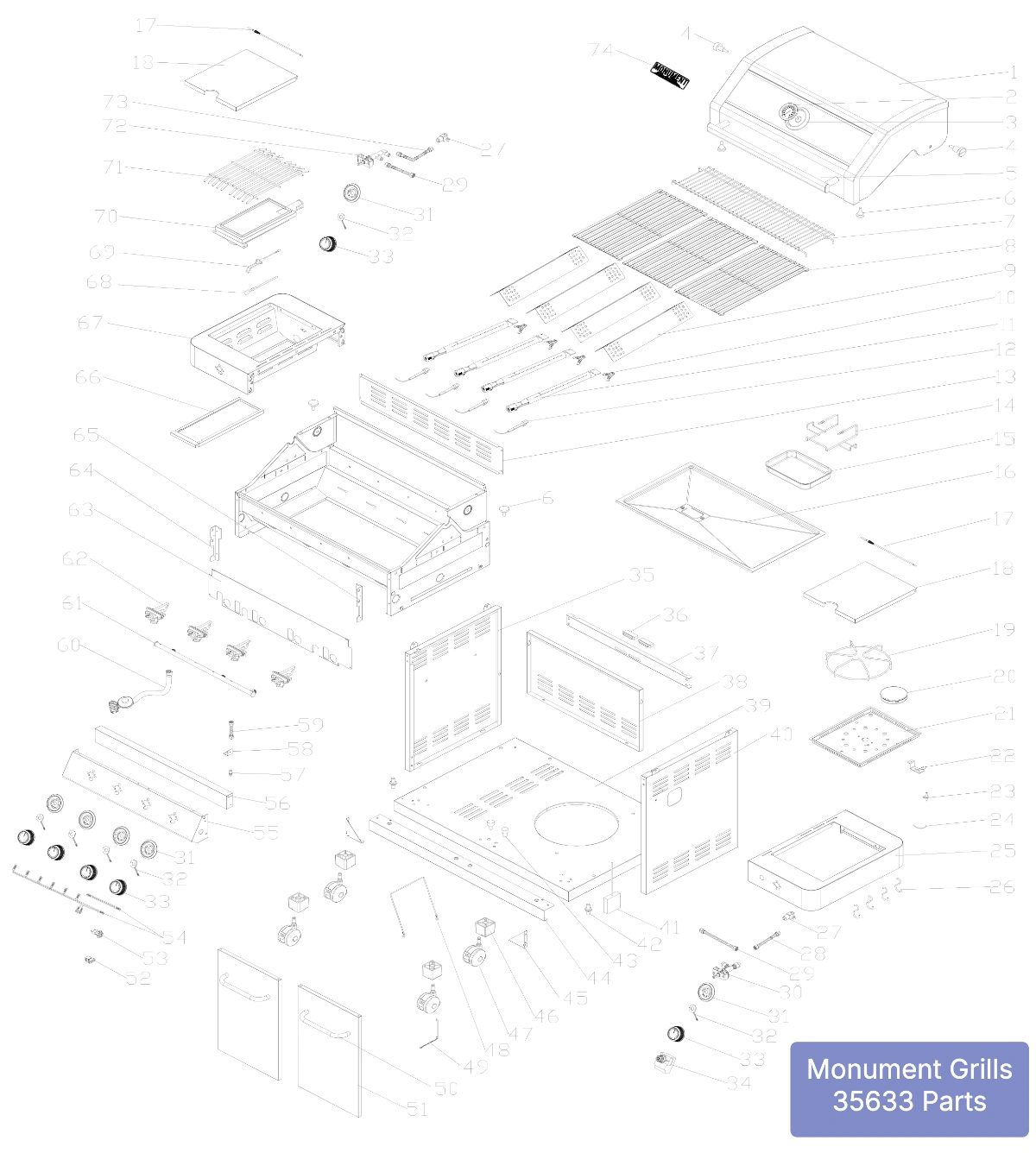

Need Monument Grills 35633 Parts? Begin by checking the Monument Grills 35633 parts diagram to locate the exact section you are working on. We display this illustration alongside a detailed Monument Grills 35633 parts list so you can locate every available component. Together they help you identify the required Monument Grills 35633 Parts.
Use the exploded view to match reference numbers from the visual guide to the data table. Match the reference number in the exploded view to the parts list to locate the correct replacement part.
Every row provides a specific part number linked to its visual reference. Verify this information to accurately identify your Monument Grills 35633 Parts.
Monument Grills 35633 Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Main Lid | D010012906 | 1 |
| 2 | Temperature Gauge | A0212824 | 1 |
| 3 | Temperature Gauge Seat | A0212967 | 1 |
| 4 | Main Lid Screw | A0407131 | 2 |
| 5 | Main Lid Handle | D010010251 | 1 |
| 6 | Hood Buffer | A0201340 | 4 |
| 7 | Warming Rack | A0212856 | 1 |
| 8 | Cooking Grid With Hole | A0212804 | 3 |
| 9 | Flame Tamer | D010012307 | 4 |
| 10 | Clamp Spring | A0212873 | 4 |
| 11 | Main Burner | A0212926 | 4 |
| 12 | Main Burner Igniter Wire | D010013685 | 4 |
| 13 | Back Panel, Top | D010012737 | 1 |
| 14 | Grease Box Bracket | A0212838 | 1 |
| 15 | Grease Box | D010012705 | 1 |
| 16 | Grease Tray | D010012072 | 1 |
| 17 | Side Burner Lid Hinge Rod | A0212534 | 2 |
| 18 | Side Burner Lid | D010007598 | 2 |
| 19 | Side Burner Cooking Grid, Right | A0212248 | 1 |
| 20 | Side Burner, Right | A0212533 | 1 |
| 21 | Side Burner Tray | D011006420 | 1 |
| 22 | Side Burner Orifice Bracket | D019706920 | 1 |
| 23 | Side Burner Igniter, Right | A0212436 | 1 |
| 24 | Side Burner Igniter Wire, Right | A02120084 | 1 |
| 25 | Side Shelf, Right | D010013686 | 1 |
| 26 | Hook | A0212538 | 4 |
| 27 | Side Burner Orifice | A0212828 | 2 |
| 28 | Side Burner Flex Gas Line, 250 | A020021 | 1 |
| 29 | Side Burner Flex Gas Line, 480 | A02120090 | 2 |
| 30 | Side Burner Gas Vavle, Right | A02120088 | 1 |
| 31 | Control Knob Base | D010012905 | 6 |
| 32 | LED Lamp Panel | A0212777 | 6 |
| 33 | Control Knob | A0212922 | 6 |
| 34 | Pulse Igniter Module | A0212864 | 1 |
| 35 | Side Panel,Left | D010012742 | 1 |
| 36 | Door Magnet | A0201249 | 2 |
| 37 | Cart Frame, Front | D010012721 | 1 |
| 38 | Back Panel, Bottom | D010012748 | 1 |
| 39 | Bottom Panel | D010012098 | 1 |
| 40 | Side Panel, Right | D010012903 | 1 |
| 41 | Battery Box | A0212663 | 1 |
| 42 | Spindle Below Door Panel | A0212557 | 2 |
| 43 | Spacing Screw Below Door Panel | A02120079 | 2 |
| 44 | Cart Bottom Panel Front Cummerbund Strip | D010012063 | 1 |
| 45 | Triangle Bracket, Left | D010012745 | 2 |
| 46 | Swivel Caster Fixing Plug | A0212805 | 4 |
| 47 | Swivel Caster | A0211004 | 4 |
| 48 | Gas-jar Fixing Line | A0212837 | 1 |
| 49 | Lighting Rod | A0212835 | 1 |
| 50 | Door Handle | D010012747 | 2 |
| 51 | Front Door | D010012094 | 2 |
| 52 | LED Lamp Seat-USB2.0 | A02120032 | 1 |
| 53 | LED Lamp Switch | A0212627 | 1 |
| 54 | LED Lamp Circuit | D010013687 | 1 |
| 55 | Main Control Panel | D010013688 | 1 |
| 56 | Main Control Panel Frame | D010012108 | 1 |
| 57 | Gas Connector | A0212830 | 1 |
| 58 | Gas Connector Fixing Panel | D010012298 | 1 |
| 59 | Main Burner Flex Gas Line | A0212829 | 1 |
| 60 | Regulator, LP | A0212831 | 1 |
| 61 | Main Manifold | A02120086 | 1 |
| 62 | Main Gas Valve | A0212862 | 4 |
| 63 | Front Baffle | D010012052 | 1 |
| 64 | Control Panel Fixing Panel, Left | D010012050 | 1 |
| 65 | Control Panel Fixing Panel, Right | D010012051 | 1 |
| 66 | Side Burner Grease Box | D010012440 | 1 |
| 67 | Side Shelf, Left | D010013689 | 1 |
| 68 | Side Burner Igniter Wire, Left | A0212891 | 1 |
| 69 | Side Burner Igniter, Left | A0212871 | 1 |
| 70 | Side Burner, Left | A0212872 | 1 |
| 71 | Side Burner Cooking Grid, Left | A0212875 | 1 |
| 72 | Side Burner Gas Vavle, Left | A02120089 | 1 |
| 73 | Side Burner Flex Gas Line, 750 | A020005 | 1 |
| 74 | Logo | A0212808 | 1 |
