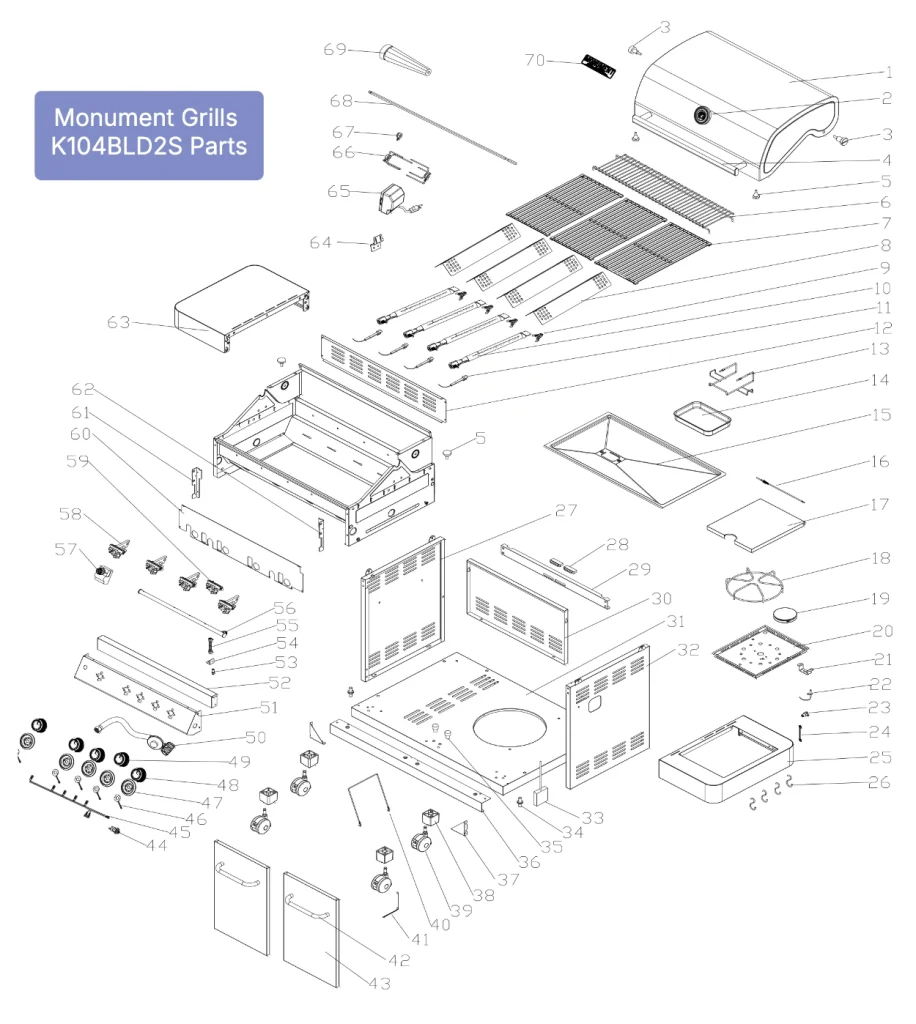

Browse the complete selection of Monument Grills K104BLD2S Parts below. You will find both the Monument Grills K104BLD2S parts list and the visual Monument Grills K104BLD2S parts diagram.
Matching a reference number from the exploded view to the text table gives you the correct part number. This method helps you identify the exact replacement parts for your grill.
The drawing illustrates how the entire assembly fits together. Studying this image shows you exactly where each individual component belongs before you begin taking the grill apart.
Always check the data tag on your grill to confirm your specific model number. Verifying this information first ensures you select the proper Monument Grills K104BLD2S Parts.
Monument Grills K104BLD2S Parts List:
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Main Lid | D010012908 | 1 |
| 2 | Temperature Gauge | D010012904 | 1 |
| 3 | Main Lid Screw | A0407131 | 2 |
| 4 | Main Lid Handle | D010010251 | 1 |
| 5 | Hood Buffer | A0201340 | 4 |
| 6 | warming rack | A0212856 | 1 |
| 7 | Cooking Grid With Hole | A0212804 | 3 |
| 8 | Flame Tamer | D010012307 | 4 |
| 9 | clamp spring | A0212873 | 4 |
| 10 | Main Burner | A0212926 | 4 |
| 11 | Main Burner Igniter Wire | D010012900 | 4 |
| 12 | Back Panel, top | D010012737 | 1 |
| 13 | Grease Box Bracket | A0212838 | 1 |
| 14 | Grease Box | D010012705 | 1 |
| 15 | Grease Tray | D010012072 | 1 |
| 16 | Side burner lid hinge rod | A0212534 | 1 |
| 17 | Side Burner Lid | D010007598 | 1 |
| 18 | Side Burner Cooking Grid, Right | A0212248 | 1 |
| 19 | Side Burner, Right | A0212533 | 1 |
| 20 | Side Burner Tray | D011006420 | 1 |
| 21 | side burner Orifice Bracket | D019706920 | 1 |
| 22 | Side burner Igniter Wire, Right | D010012901 | 1 |
| 23 | side burner Orifice | A0212828 | 1 |
| 24 | Side Burner Flex Gas Line, Right | A0201169 | 1 |
| 25 | Side Shelf, Right | D010012899 | 1 |
| 26 | hook | A0212538 | 4 |
| 27 | Side Panel, left | D010012742 | 1 |
| 28 | door magnet | A0201249 | 2 |
| 29 | Cart Frame, front | D010012721 | 1 |
| 30 | Back Panel, bottom | D010012748 | 1 |
| 31 | Bottom Panel | D010012098 | 1 |
| 32 | Side Panel, Right | D010012903 | 1 |
| 33 | Battery box | A0212663 | 1 |
| 34 | Spindle below door panel | A0212557 | 2 |
| 35 | spacing screw below door panel | A0212616 | 2 |
| 36 | Cart bottom panel front cummerbund strip | D010012063 | 1 |
| 37 | Triangle Bracket, left | D010012745 | 2 |
| 38 | swivel caster fixing plug | A0212805 | 4 |
| 39 | Sw ivel Caster | A0211004 | 4 |
| 40 | gas-jar fixing line | A0212837 | 1 |
| 41 | Lighting Rod | A0212835 | 1 |
| 42 | Door Handle | D010012747 | 2 |
| 43 | Front Door | D010012094 | 2 |
| 44 | LED lamp switch | A0212627 | 1 |
| 45 | LED lamp circuit | A0212832 | 1 |
| 46 | LED lamp panel | A0212777 | 5 |
| 47 | Control Knob base | D010012905 | 5 |
| 48 | Control Knob | A0212922 | 4 |
| 49 | Control Knob right | D010012948 | 1 |
| 50 | Regulator, LP | A0212831 | 1 |
| 51 | Main Control Panel | D010012767 | 1 |
| 52 | Main Control Panel Frame | D010012054 | 1 |
| 53 | Gas connector | A0212830 | 1 |
| 54 | Gas connector fixing panel | D010012298 | 1 |
| 55 | Main Burner Flex Gas Line | A0212829 | 1 |
| 56 | Main Manifold | A0212826 | 1 |
| 57 | Pulse Igniter Module | A0212934 | 1 |
| 58 | Main Gas Valve | A0212862 | 4 |
| 59 | Side Burner Gas Vavle | A0212863 | 1 |
| 60 | Front Baffle | D010012052 | 1 |
| 61 | Control panel fixing panel, left | D010012050 | 1 |
| 62 | Control panel fixing panel, Right | D010012051 | 1 |
| 63 | Side Shelf, Left | D010012770 | 1 |
| 64 | Motor support | D010000004 | 1 |
| 65 | MOTOR | A0212960 | 1 |
| 66 | Spit fork | A0212793 | 2 |
| 67 | Key washer | A0201337 | 1 |
| 68 | Spit rod | A0212460 | 1 |
| 69 | Roasted fork lever handle | A0201339 | 1 |
| 70 | Logo | A0212808 | 1 |
