Need Monument Grills Denali 405 Parts? Below you’ll find the complete Monument Grills Denali 405 parts list and the matching Monument Grills Denali 405 parts diagram. These resources help you identify each component and its corresponding part number..

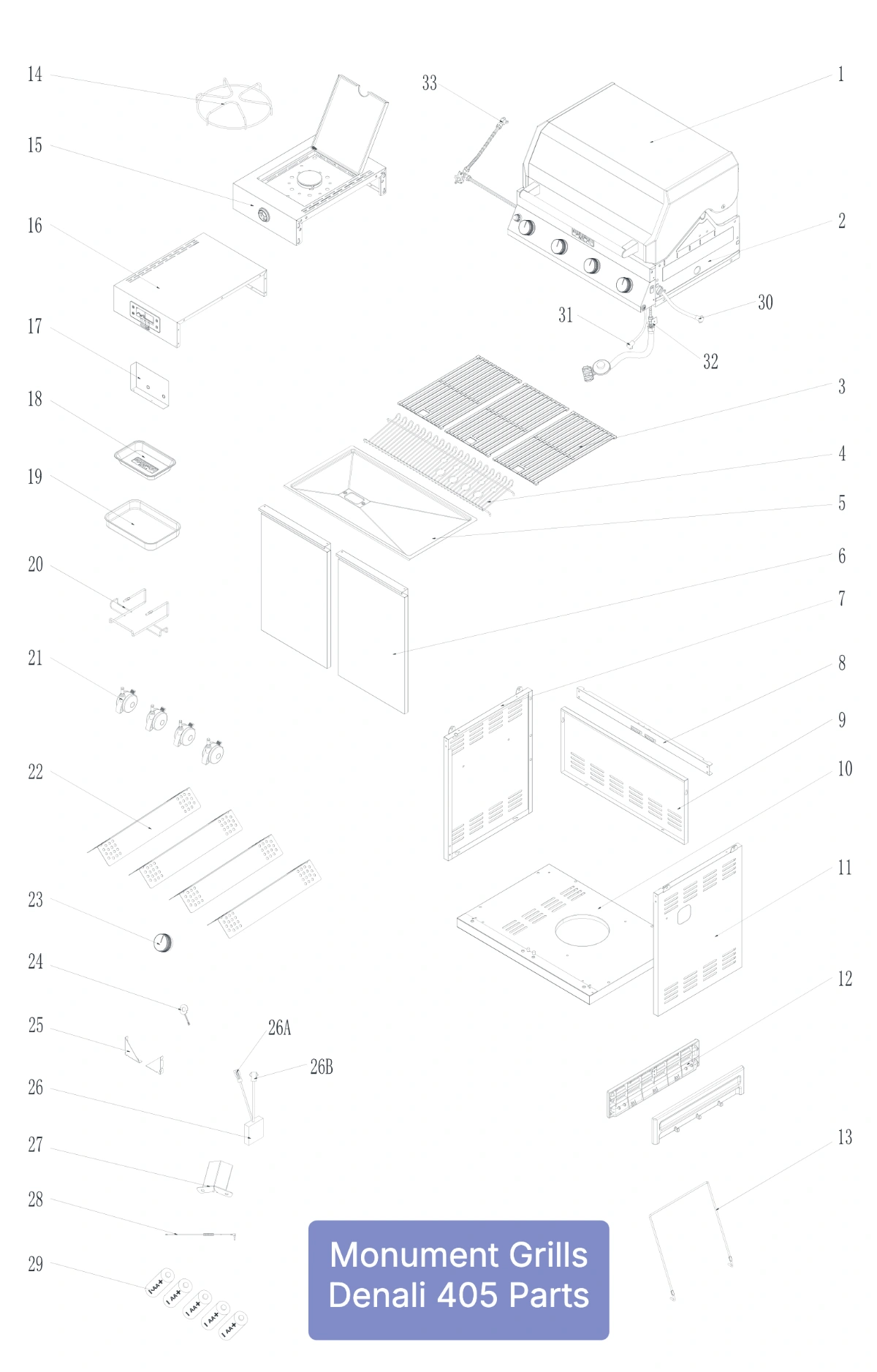

Use the exploded view to find the reference number for a specific component. Match the reference number in the exploded view to the parts list to find the correct part number.
The exploded view shows how the burners and main structure fit together. Reviewing this layout shows the exact physical position of a component before ordering a replacement.
Always locate the data tag on your grill to verify the model number first. Confirming this detail helps ensure you choose the proper Monument Grills Denali 405 Parts.
Monument Grills Denali 405 Parts List
| Ref. No | Description |
|---|---|
| 1 | Main Lid |
| 2 | Fire Box |
| 3 | Cooking Grid With Hole |
| 4 | Warming Rack |
| 5 | Grease Tray |
| 6 | Cabinet Door |
| 7 | Cabinet Side Panel, Left |
| 8 | Cart Frame, Front |
| 9 | Back Panel, Bottom |
| 10 | Cart Bottom Shelf |
| 11 | Locking Caster |
| 12 | Side Shelf End Cap |
| 13 | Gas-jar Fixing Line |
| 14 | Side Burner Cooking Grid |
| 15 | Side Shelf,Lift |
| 16 | Side Shelf,Right |
| 17 | Display Screen Baffle |
| 18 | Foil Tray |
| 19 | Grease Box |
| 20 | Grease Box Bracket |
| 21 | Locking Caster |
| 22 | Flame Tamer |
| 23 | Control Knob |
| 24 | LED knob light Panel |
| 25 | Triangle Bracket |
| 26 | Battery Box |
| 26A | Battery Box female |
| 26B | Battery Boxmale |
| 27 | Temperature Sensor Cover |
| 28 | Meat Probe |
| 29 | Battery |
| 30 | Fire Box Temperature Sensor Wire |
| 31 | Knob Light Panel Wire |
| 32 | Valve Converter Bracket |
| 33 | Side Burner Nozzel Seat |
