Find the specific components you require by using the Monument Grills M305, M325, M325S parts diagram below. We provide this visual guide directly alongside the Monument Grills M305, M325, M325S parts list to show every available component. Together, these resources help you identify the correct Monument Grills M305, M325, M325S Parts.

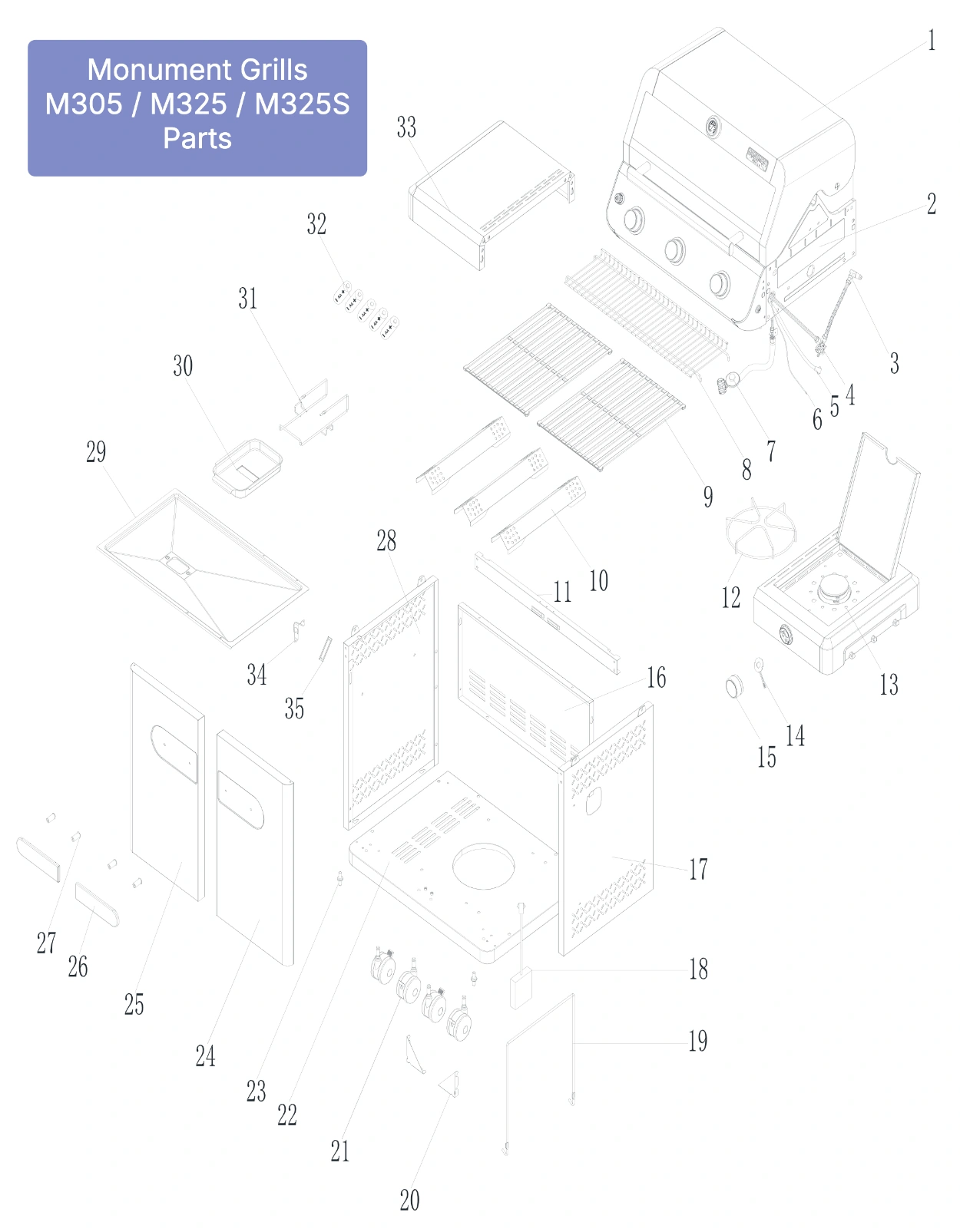

The provided exploded view shows how the components fit together and shows where each component is located. Match the visual reference numbers to the data table to locate your required replacement parts.
Each row contains a specific part number matched to the reference number. Double-check this information to ensure you identify the correct Monument Grills M305, M325, M325S Parts.
Monument Grills M305, M325, M325S Parts List
| Ref No | Description |
|---|---|
| 1 | Lid Kit |
| 2 | Firebox Assembly |
| 3 | Side Burner Nazzle Seat |
| 4 | Sider Burner Regulator |
| 5 | Side Burner Lamp Panel Wire |
| 6 | Side Burner Igniter Wire |
| 7 | LP Regulator Kit |
| 8 | Warming Rack |
| 9 | Cooking Grid |
| 10 | Flame Tamer |
| 11 | Cart Front Bar |
| 12 | Pan Bracket |
| 13 | Side Shelf,Right |
| 14 | LED Lamp Panel |
| 15 | Control Knob |
| 16 | Cart Back Panel |
| 17 | Cart Right Side Panel |
| 18 | Battery Box |
| 19 | Gas Tank Holding Wire |
| 20 | Triangle Joint Parts |
| 21 | Locking Caster |
| 22 | Cart Bottom Board |
| 23 | Spindle Below Door Panel |
| 24 | Cabinet Door,Right |
| 25 | Cabinet Door,Left |
| 26 | Door Handle |
| 27 | Door Handle Seat |
| 28 | Cart Left Side Panel |
| 29 | Grease Tray |
| 30 | Grease Pan |
| 31 | Grease Pan Bracket |
| 32 | Battery |
| 33 | Side Shelf,Left |
| 34 | Bottle Opener |
| 35 | Bottle Opener Retainer |
