Looking for the complete Monument Grills Denali D605P parts list and the visual Monument Grills Denali D605P parts diagram? These sections show all the replacement parts available for this specific grill, helping you find the correct Monument Grills Denali D605P Parts.
The parts list and the exploded view help you identify specific components. Match the reference number from the drawing to the list to find the exact part number for your replacement parts.

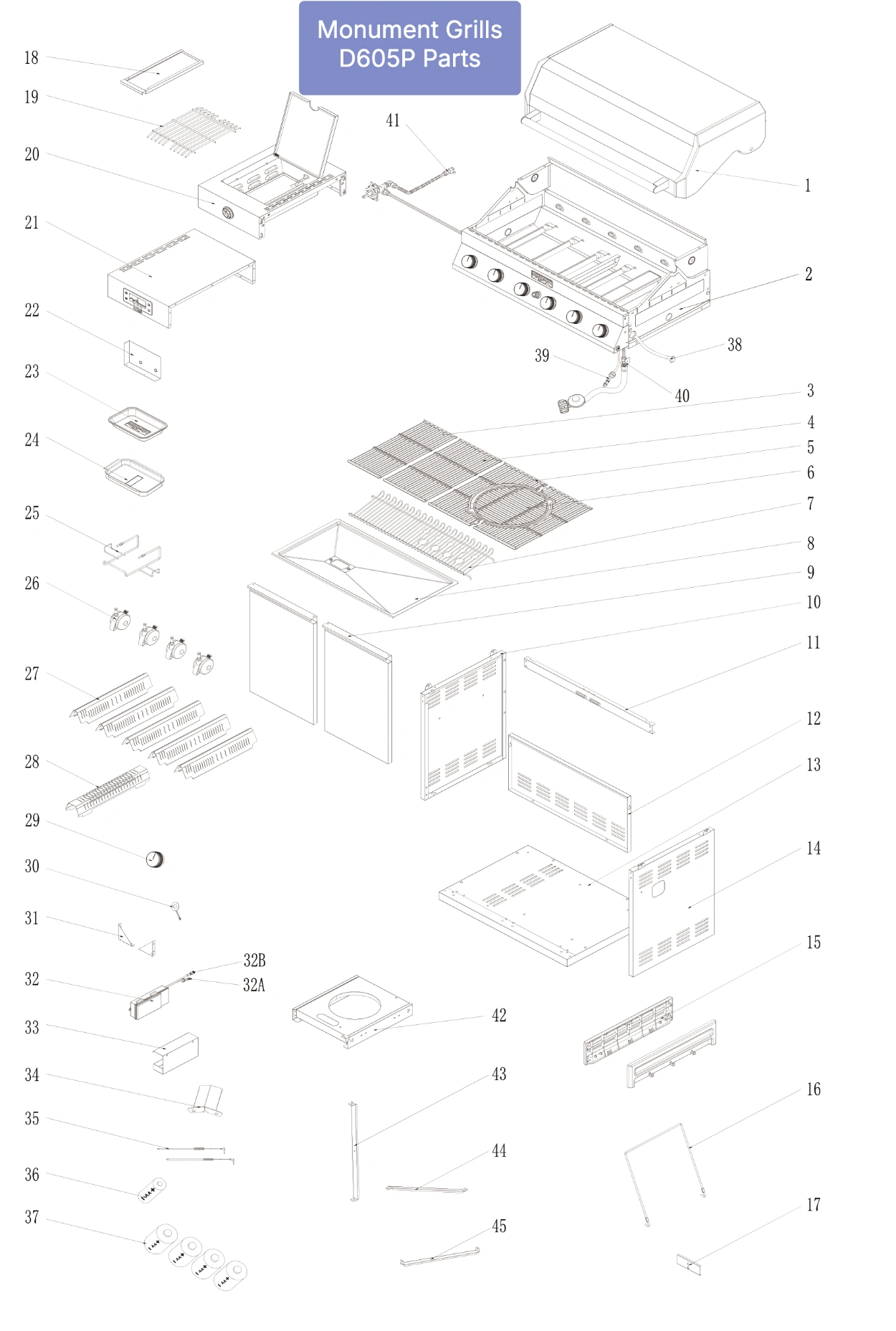

The exploded view shows how the entire grill assembly fits together. This image helps you locate individual components and see their exact position before replacing them.
Always check the data tag on your grill to verify the model number. Confirm this information matches before you select any Monument Grills Denali D605P Parts.
Monument Grills Denali D605P Parts List:
| Ref. No | Description |
|---|---|
| 1 | Main Lid |
| 2 | Fire Box |
| 3 | Cooking Grid 17.7×7.3 |
| 4 | Cooking Grid 17.7×9.45 |
| 5 | Versatile Cooking Grids |
| 6 | Cooking Grid $12 |
| 7 | Warming Rack |
| 8 | Grease Tray |
| 9 | Door Kit |
| 10 | Cart Left Side Panel |
| 11 | Cart Front Bar |
| 12 | Cart Back Panel |
| 13 | Cart Bottom Panel |
| 14 | Cart Right Side Panel |
| 15 | Side Decorative Panel |
| 16 | Gas Tank Holding Wire |
| 17 | Sear Side Burner Windshield |
| 18 | Sear Side Burner Grease Box |
| 19 | Sear Side Burner Cooking Grid |
| 20 | Sear Side Burner Kit |
| 21 | Right Side Shelf |
| 22 | Display Screen Baffle |
| 23 | Foil Tray |
| 24 | Grease Box |
| 25 | Grease Box Bracket |
| 26 | Locking Caster |
| 27 | Flame Tamer |
| 28 | Sear Burner Flame Tamer |
| 29 | Control Knob |
| 30 | LED Light Panel |
| 31 | Triangle Joint Parts |
| 32 | Battery Box |
| 32A | Battery Box female |
| 32B | Battery Box male |
| 33 | Battery Box Cover |
| 34 | Temperature Sensor Cover |
| 35 | Meat Probe |
| 36 | AA Battery |
| 37 | D Battery |
| 38 | Fire Box Temperature Sensor Wire |
| 39 | Knob Light Panel Wire |
| 40 | Valve Converter Bracket |
| 41 | Side Burner Nozzle Seat |
| 42 | Gas Cylinder Bottom Base |
| 43 | Gas Cylinder Baffler-A |
| 44 | Gas Cylinder Baffler-B |
| 45 | Gas Cylinder Baffler-C |
