Looking for the complete Monument Grills Eminence E605 parts list or the visual Monument Grills Eminence E605 parts diagram? These sections detail all the replacement parts available for this specific grill, outlining the full selection of Monument Grills Eminence E605 Parts.
The parts list and the exploded view work together to help you identify components. You can match the reference number from the drawing to the list to find the exact part number for your replacement parts.

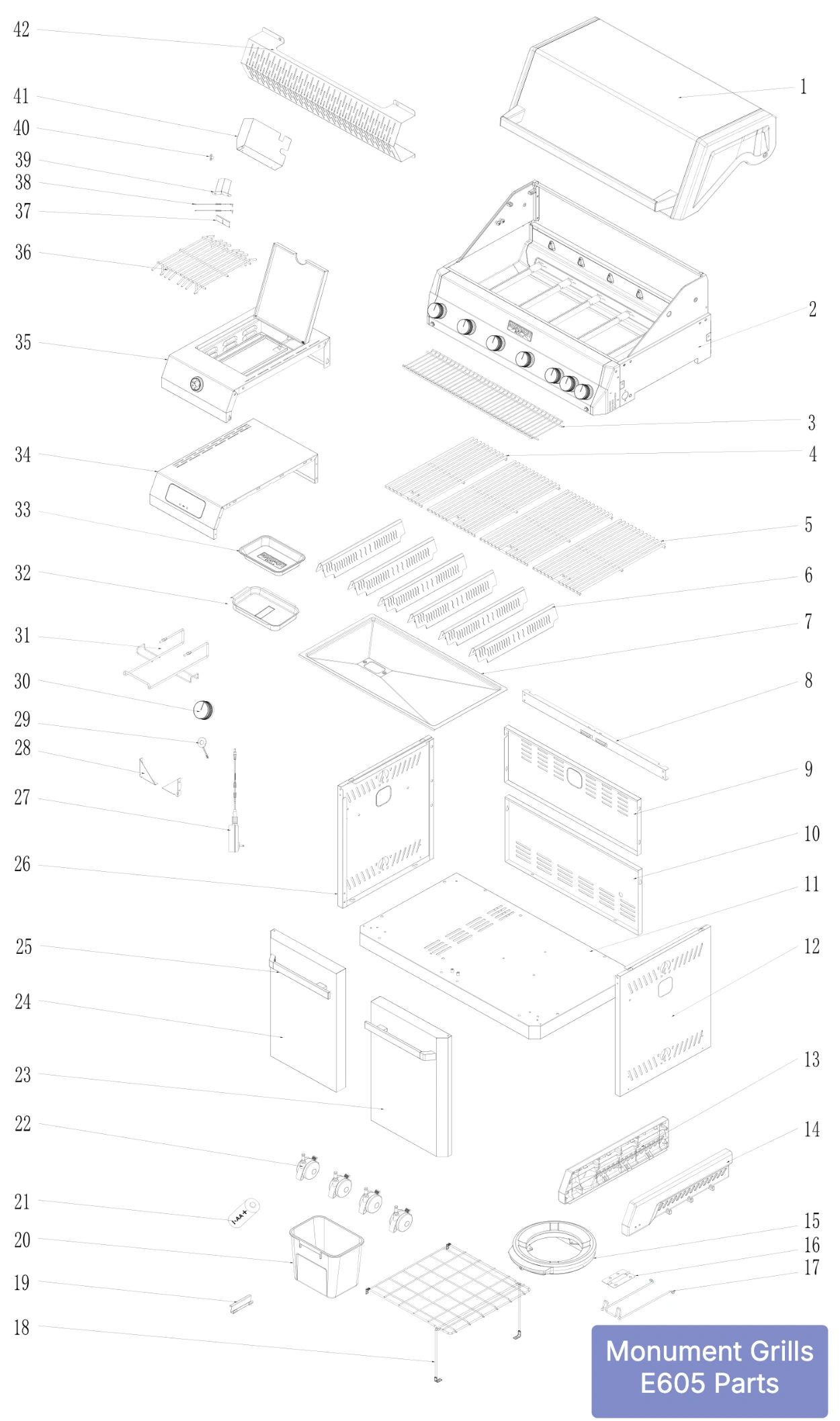

The exploded view shows how the entire grill assembly fits together. This image helps you locate individual components and see their exact position before replacing them.
Always check the data tag on your grill to verify the model number. Confirm this information matches before you select any Monument Grills Eminence E605 Parts.
Monument Grills Eminence E605 Parts List:
| Ref No | Description |
|---|---|
| 1 | Main Lid |
| 2 | Fire Box |
| 3 | Warming Rack |
| 4 | Cooking Grid |
| 5 | Cooking Grid |
| 6 | Flame Tamer |
| 7 | Grease Tray |
| 8 | Cart Front Bar |
| 9 | Cart Back Upper Panel |
| 10 | Cart Back Panel |
| 11 | Cart Bottom Panel |
| 12 | Cart Right Side Panel |
| 13 | Left Side Decorative Panel |
| 14 | Right Side Decorative Panel |
| 15 | Gas Cylinder Weighing |
| 16 | Gas Tank Holding Wire Pressing Piece |
| 17 | Gas Tank Holding Wire |
| 18 | Shelves |
| 19 | Trash Bin Hook |
| 20 | Trash Bin |
| 21 | AA Battery |
| 22 | Locking Caster |
| 23 | Right Door Kit |
| 24 | Left Door Kit |
| 25 | Door Handle |
| 26 | Cart Left Side Panel |
| 27 | Adapter |
| 28 | Triangle Joint Parts |
| 29 | LED Light Panel |
| 30 | Knob |
| 31 | Grease Box Bracket |
| 32 | Grease Box |
| 33 | Foil Tray |
| 34 | Right Side Shelf |
| 35 | Sear Side Burner Kit |
| 36 | Sear Side Burner Cooking Grid |
| 37 | Sear Side Burner Windshield |
| 38 | Meat Probe |
| 39 | Temperature Sensor Cover |
| 40 | Wire Clamp |
| 41 | Display Screen Baffle |
| 42 | Rear Burner Windshield |
