See the complete Monument Grills 41847NG parts diagram and Monument Grills 41847NG parts list below. Together, these resources help you identify the correct Monument Grills 41847NG Parts for your grill and locate the matching part numbers.

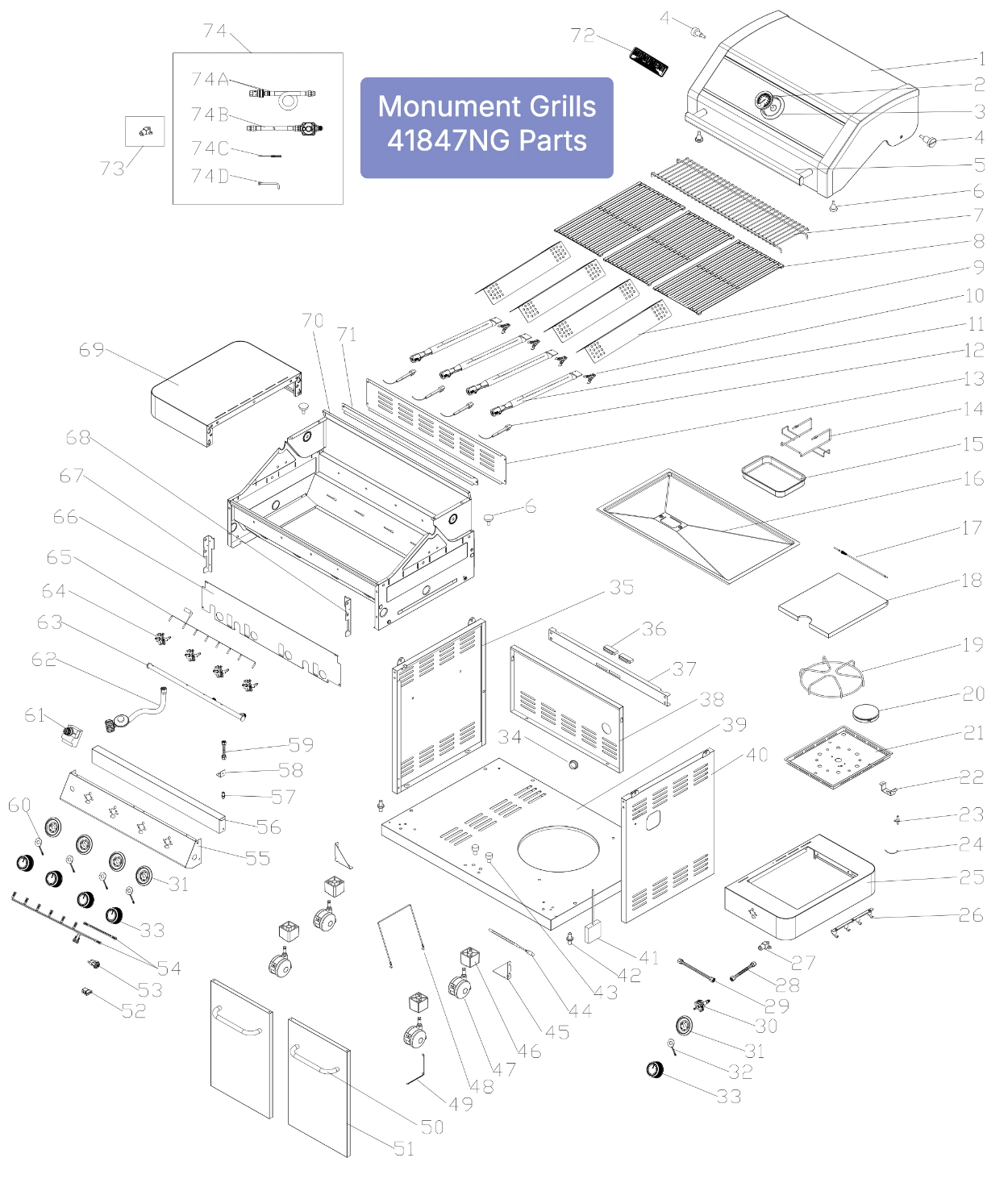

Use the exploded view to match the reference numbers in the illustration with the parts list. This makes it easier to identify the correct replacement parts for the component you need.
The illustration shows how the grill is divided into individual components and assemblies. Compare the drawing with the parts list to confirm the correct part number before replacing a component.
Check the model number on your grill before selecting Monument Grills 41847NG Parts. Verifying the model helps ensure you choose the correct replacement parts.
Monument Grills 41847NG Parts List
| Ref No | Description | Part Number | Qty |
|---|---|---|---|
| 1 | Main Lid | D010012906 | 1 |
| 2 | Temperature Gauge | A0212824 | 1 |
| 3 | Temperature Gauge Seat | A0212967 | 1 |
| 4 | Main Lid Screw | A0407131 | 2 |
| 5 | Main Lid Handle | D010010251 | 1 |
| 6 | Hood Buffer | A0212666 | 4 |
| 7 | Warming Rack | A02120877 | 1 |
| 8 | Cooking Grid With Hole | A0212804 | 3 |
| 9 | Flame Tamer | D010012307 | 4 |
| 10 | Clamp Spring | A0212873 | 4 |
| 11 | Main Burner | A0212926 | 4 |
| 12 | Main Burner Igniter Wire | D010012900 | 4 |
| 13 | Back Panel, Top | D010012737 | 1 |
| 14 | Grease Box Bracket | A0212838 | 1 |
| 15 | Grease Box | D010012705 | 1 |
| 16 | Grease Tray | D010012072 | 1 |
| 17 | Side Burner Lid Hinge Rod | A0212534 | 1 |
| 18 | Side Burner Lid | D010007598 | 1 |
| 19 | Side Burner Cooking Grid, Right | A0212248 | 1 |
| 20 | Side Burner, Right | A0212533 | 1 |
| 21 | Side Burner Tray | D011006420 | 1 |
| 22 | Side Burner Orifice Bracket | D019706920 | 1 |
| 23 | Side Burner Igniter, Right | A0212436 | 1 |
| 24 | Side Burner Igniter Wire, Right | A0212869 | 1 |
| 25 | Side Shelf, Right | D010014389 | 1 |
| 26 | Hook | D010018023 | 1 |
| 27 | Side Burner Orifice | A0212828 | 1 |
| 28 | Side Burner Flex Gas Line, 250 | A020021 | 1 |
| 29 | Side Burner Flex Gas Line, 480 | A02120090 | 1 |
| 30 | Side Burner Gas Vavle, Right | A02120832 | 1 |
| 31 | Control Knob Base | D010012905 | 5 |
| 32 | LED Lamp Panel-A | A02120804 | 1 |
| 33 | Control Knob | A02120817 | 5 |
| 34 | RUBBER GROMMET | A020064 | 1 |
| 35 | Side Panel,Left | D010012742 | 1 |
| 36 | Door Magnet | A0201249 | 2 |
| 37 | Cart Frame, Front | D010012721 | 1 |
| 38 | Back Panel, Bottom | D010023163 | 1 |
| 39 | Bottom Panel | D010012098 | 1 |
| 40 | Side Panel, Right | D010012903 | 1 |
| 41 | Battery Box | A0212663 | 1 |
| 42 | Spindle Below Door Panel | A0212557 | 2 |
| 43 | Spacing Screw Below Door Panel | A02120079 | 2 |
| 44 | Cart Bottom Panel Front Cummerbund Strip | D010012063 | 1 |
| 45 | Triangle Bracket, Left | D010012745 | 2 |
| 46 | Swivel Caster Fixing Plug | A0212805 | 4 |
| 47 | Swivel Caster | A0211004 | 4 |
| 48 | Gas-jar Fixing Line | A0212837 | 1 |
| 49 | Lighting Rod | A0212835 | 1 |
| 50 | Door Handle | D010012747 | 2 |
| 51 | Front Door | D010012094 | 2 |
| 52 | LED Lamp Seat-USB2.0 | A02120032 | 1 |
| 53 | LED Lamp Switch | A0212627 | 1 |
| 54 | LED Lamp Circuit | D010013690 | 1 |
| 55 | Main Control Panel | D010014390 | 1 |
| 56 | Main Control Panel Frame | D010012108 | 1 |
| 57 | Gas Connector | A0212830 | 1 |
| 58 | Gas Connector Fixing Panel | D010012298 | 1 |
| 59 | Main Burner Flex Gas Line | A0212829 | 1 |
| 60 | LED Lamp Panel-B | A02120213 | 4 |
| 61 | Pulse Igniter Module | A02120838 | 1 |
| 62 | Regulator, LP | A0212831 | 1 |
| 63 | Main Manifold | A02120087 | 1 |
| 64 | Main Gas Valve | A02120914 | 4 |
| 65 | Gas Valve Circuit | A02120842 | 1 |
| 66 | Front Baffle | D010012052 | 1 |
| 67 | Control Panel Fixing Panel, Left | D010012050 | 1 |
| 68 | Control Panel Fixing Panel, Right | D010012051 | 1 |
| 69 | Side Shelf, Left | D010012770 | 1 |
| 70 | Firebox | D010012655 | 1 |
| 71 | Back Panel, A | D010015501 | 1 |
| 72 | Logo | A0212808 | 1 |
| 73 | NG Side Burner Orifice | A02120889 | 1 |
| 74 | NG Assembly | D010020645 | |
| 74A | NG Hose | A02120849 | |
| 74B | NG Regulator | A02120848 | |
| 74C | Slot Screwdriver | A02120843 | |
| 74D | Orifice Sockets | A02120844 |
