View the complete Monument Grills Denali 425 parts diagram and Monument Grills Denali 425 parts list below. These references show the available Monument Grills Denali 425 Parts and help you identify the correct replacement parts for your grill.

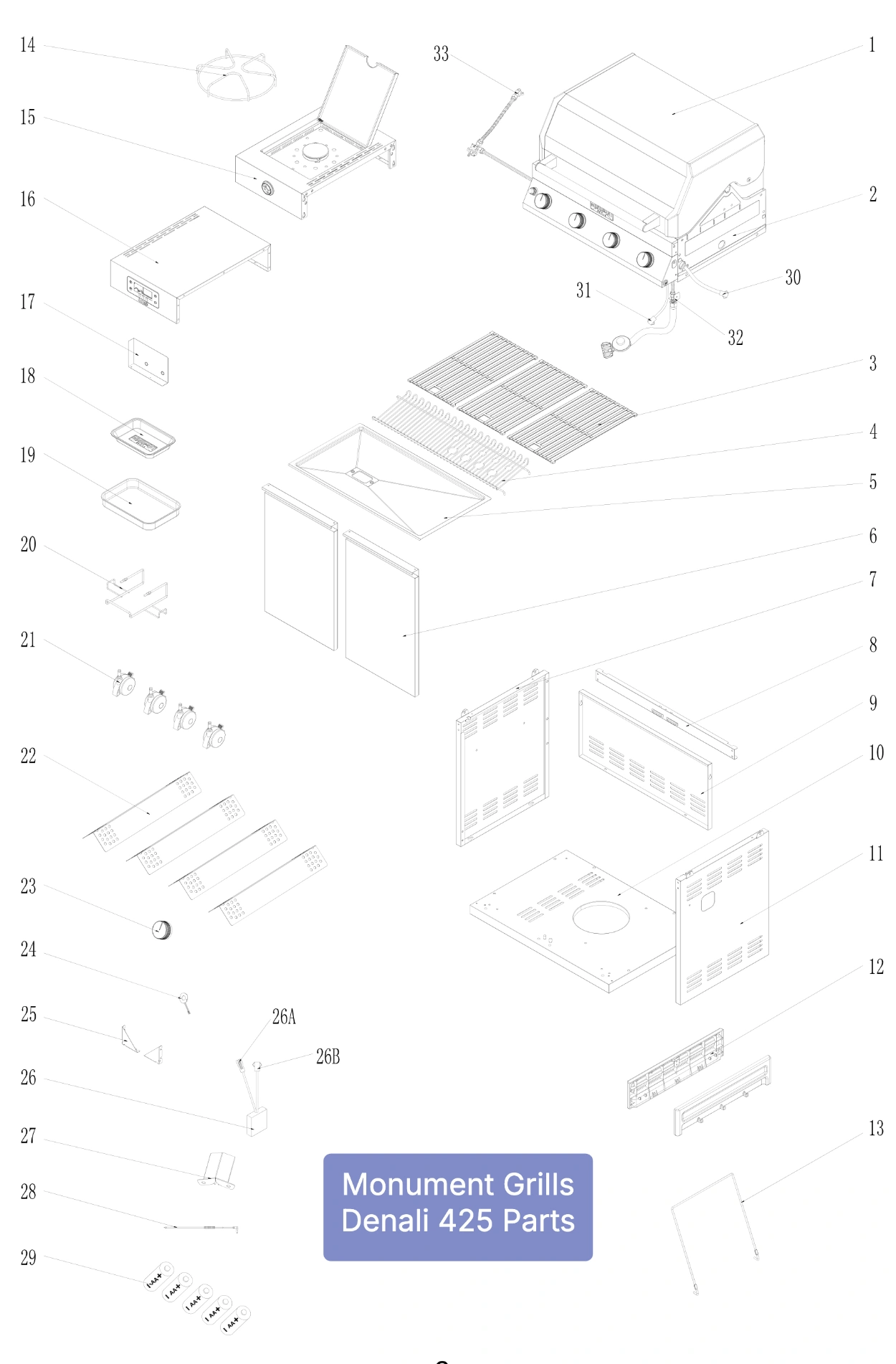

Use the exploded view to match reference numbers with the parts list. Comparing these references helps you find the correct part number for the component you need.
The illustration shows how the components fit together within the grill. Use the drawing to locate each component before selecting a replacement part.
Check the model number on your grill before choosing Monument Grills Denali 425 Parts. Verifying the model helps ensure you select the correct replacement parts.
Monument Grills Denali 425 Parts List
| Ref No | Description |
|---|---|
| 1 | Main Lid |
| 2 | Fire Box |
| 3 | Cooking Grid With Hole |
| 4 | Warming Rack |
| 5 | Grease Tray |
| 6 | Cabinet Door |
| 7 | Cabinet Side Panel, Left |
| 8 | Cart Frame, Front |
| 9 | Back Panel, Bottom |
| 10 | Cart Bottom Shelf |
| 11 | Locking Caster |
| 12 | Side Shelf End Cap |
| 13 | Gas-jar Fixing Line |
| 14 | Side Burner Cooking Grid |
| 15 | Side Shelf,Lift |
| 16 | Side Shelf,Right |
| 17 | Display Screen Baffle |
| 18 | Foil Tray |
| 19 | Grease Box |
| 20 | Grease Box Bracket |
| 21 | Locking Caster |
| 22 | Flame Tamer |
| 23 | Control Knob |
| 24 | LED knob light Panel |
| 25 | Triangle Bracket |
| 26 | Battery Box |
| 26A | Battery Box female |
| 26B | Battery Box male |
| 27 | Temperature Sensor Cover |
| 28 | Meat Probe |
| 29 | Battery |
| 30 | Fire Box Temperature Sensor Wire |
| 31 | Knob Light Panel Wire |
| 32 | Valve Converter Bracket |
| 33 | Side Burner Nozzel Seat |
